Description

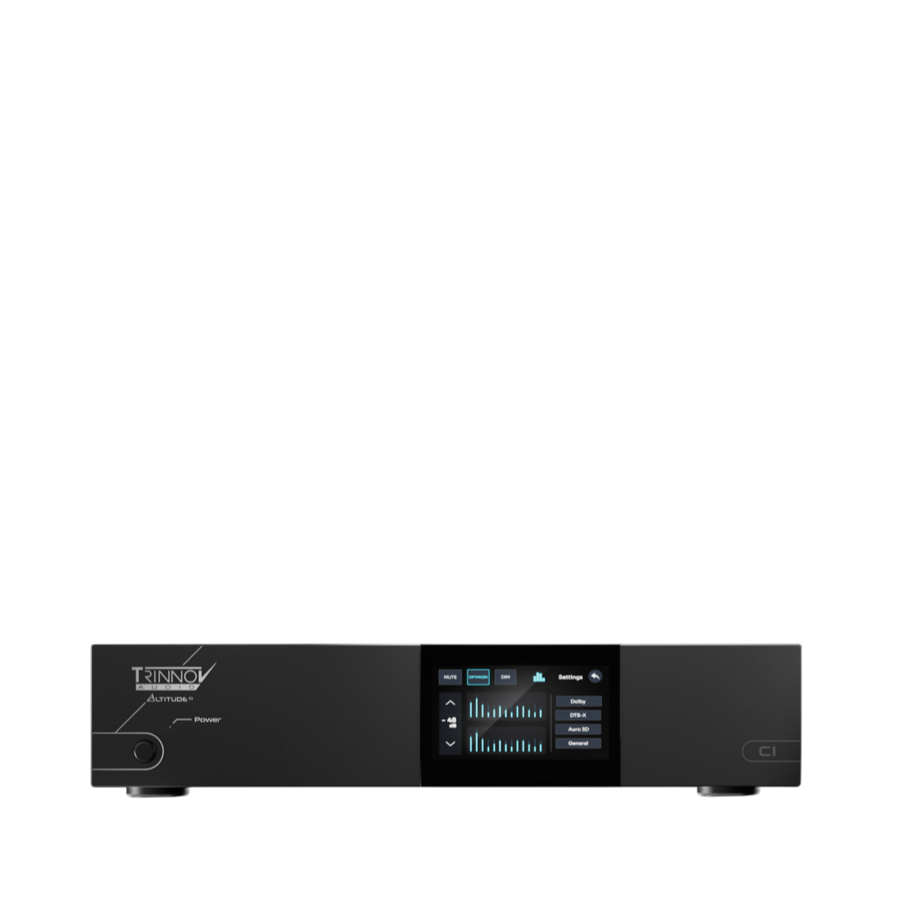

The Trinnov Altitude CI is a high-performance immersive audio processor designed for the most demanding custom home cinema installations. Combining Trinnov’s renowned Optimizer technology with flexible, network-based connectivity, it delivers exceptional precision, clarity and immersion across a wide range of speaker configurations.

Key Technical Specifications

  • 8–32 configurable output channels, scalable in 2-channel increments

  • Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced

  • Trinnov Optimizer with advanced 3D room and loudspeaker calibration

  • Native processing up to 192kHz, depending on channel count

  • 4 × HDMI 2.1 inputs / 2 × HDMI 2.1 outputs, supporting up to 8K/60 and 4K/120

  • Native Dante and AES67 Audio over IP

  • Up to 32 channels AES/EBU digital I/O

  • 8 balanced analogue outputs

  • 64-bit floating-point audio processing

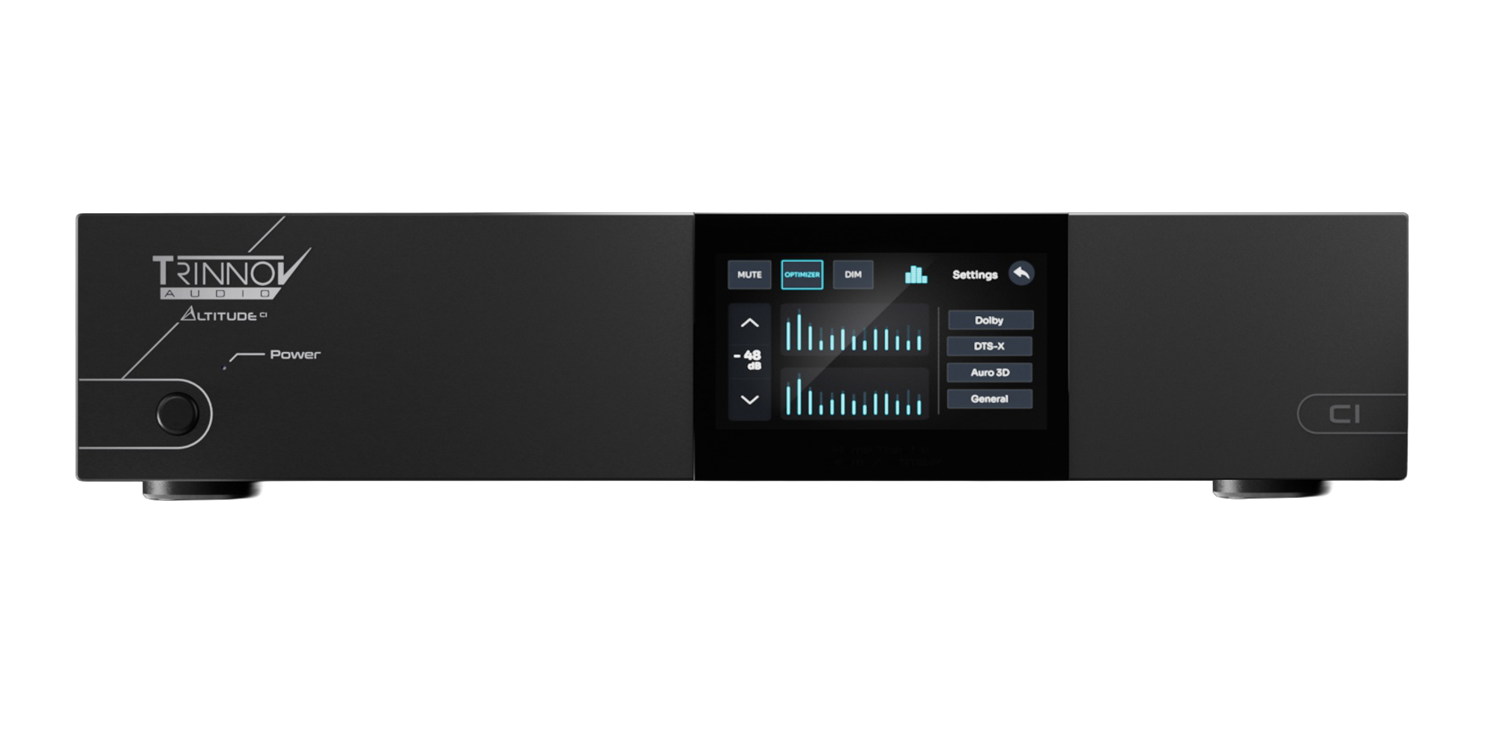

  • 2U rack-mount chassis with front-panel touchscreen

  • Flexible routing of analogue, digital and network audio outputs

The Altitude CI combines uncompromising audio performance with the scalability and connectivity required for today’s most sophisticated private cinemas.

Prices start at £8819
